All Products

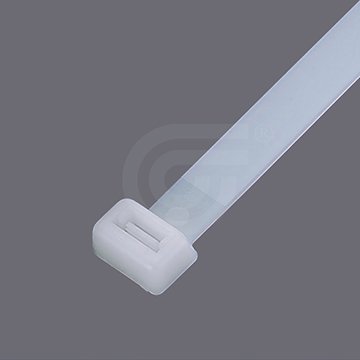

Extra Heavy Duty Ties
Model : GT-EHD
– Extra heavy duty ties for application where higher tensile strength is required
-One-piece construction for consistent performance and reliability
-Lowest threading force of any one-piece cable tie in the industry
Material : UL Approved Polyamide 6.6, 94V-2
Color : All colors are available
Application : Energy, Automation, Rail Transpotation, Electrical Wiring
SKU GT-EHD
Categories Extra Heavy Duty Ties, Extra Heavy Duty Ties, Functionality Cable Ties, General Purpose Cable Ties
Features: GT
Specification Information
Certificate
Specifications

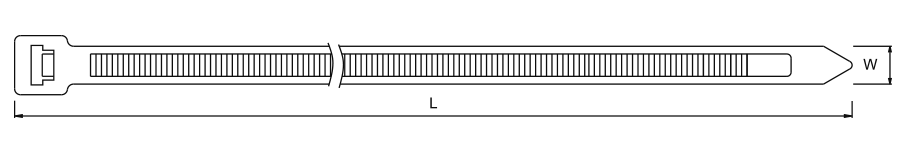

Part.No | Length | Width | Max.Bundle Dia. | Min. Loop tensile strength | operating temperature | |||||
mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | |
GT-290EHD | 295 | 11.61 | 12.6 | 0.5 | 76 | 2.99 | 113.4 | 250 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-480EHD | 480 | 18.9 | 12.6 | 0.5 | 120 | 4.72 | 113.4 | 250 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-580EHD | 580 | 22.83 | 12.6 | 0.5 | 152 | 5.98 | 113.4 | 250 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-730EHD | 730 | 28.74 | 12.6 | 0.5 | 204 | 8.03 | 113.4 | 250 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
