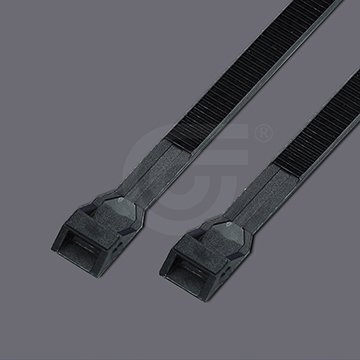

Polyamide 12 Ties
Model : GTN
– Polyamide 12 ties are better performance on chemical resistance and ultraviolet resistance.
– Parallel tie entry for enhanced fit around circular bundles
– Outside serrations minimize indentation and damage to wire and cable insulation
– Double locking head reduce belt slipping risk
– Weather resistant cable tie for use in outdoor application
Material : PA12
Color : Black
Application : Energy, Automation, Rail Transpotation, Electrical Wiring
SKU GTN
Categories Polyamide 12 Ties, Specialty Cable Ties
Features: GT, UV-resistant, Weather-resistant
Specification Information
Certificate
Specifications

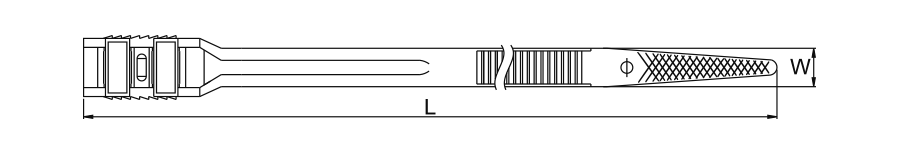

Part.No | Length | Width | Max.Bundle Dia. | MIn. Loop tensile strength | operating temperature | Locking Device | ||||||
mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | Single | Double | |
GTN-115ST | 114 | 4.47 | 6.2 | 0.24 | 25 | 0.98 | 30 | 66 | 80˚ C (176˚ F) | -40˚ C (-40˚ F) | ● | |
GTN-180ST | 175 | 6.89 | 6.2 | 0.24 | 40 | 1.57 | 30 | 66 | 80˚ C (176˚ F) | -40˚ C (-40˚ F) | ● | |
GTN-180HD | 180 | 7.89 | 8.6 | 0.34 | 40 | 1.57 | 35 | 77 | 80˚ C (176˚ F) | -40˚ C (-40˚ F) | ● | |
GTN-260HD | 260 | 10.24 | 8.6 | 0.34 | 53 | 2.09 | 40 | 88 | 80˚ C (176˚ F) | -40˚ C (-40˚ F) | ● | |
GTN-360HD | 355 | 13.98 | 8.6 | 0.34 | 83 | 3.27 | 40 | 88 | 80˚ C (176˚ F) | -40˚ C (-40˚ F) | ● | |
GTN-510HD | 515 | 20.28 | 8.9 | 0.35 | 138 | 5.43 | 54.5 | 120 | 80˚ C (176˚ F) | -40˚ C (-40˚ F) | ● | |
GTN-750HD | 755 | 29.72 | 8.9 | 0.35 | 210 | 8.27 | 54.5 | 120 | 80˚ C (176˚ F) | -40˚ C (-40˚ F) | ● | |
GTNL-360HD | 360 | 14.17 | 8.9 | 0.35 | 100 | 3.93 | 40 | 88 | 80˚ C (176˚ F) | -40˚ C (-40˚ F) | ● | |
GTNL-500HD | 482 | 18.98 | 8.9 | 0.35 | 135 | 5.31 | 40 | 88 | 80˚ C (176˚ F) | -40˚ C (-40˚ F) | ● |
